Elinchrom Software for Studio Flashes
FAST AND EASY LIGHTING CONTROL

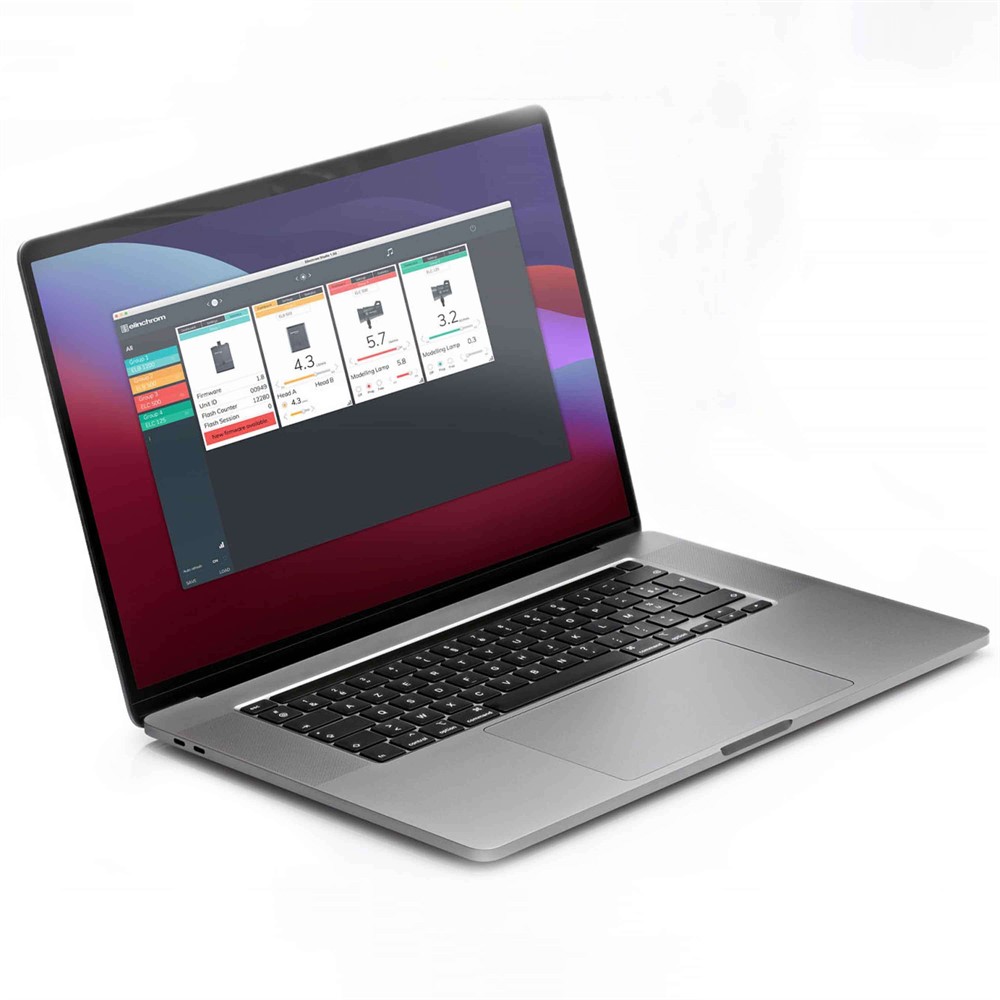

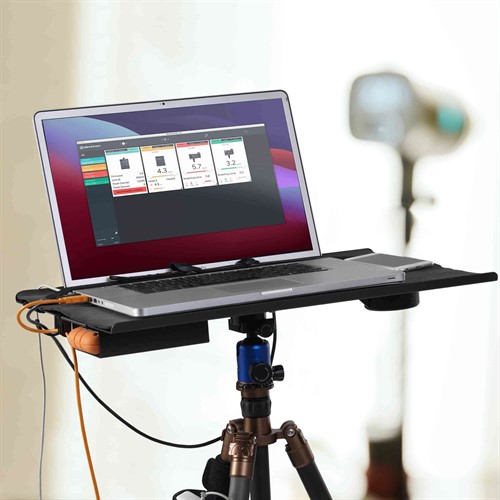

With the Elinchrom Studio Software, your job as a photographer becomes both easier and more efficient. You can control and monitor your flashes directly from your computer—iOS or PC—using the intuitive software that provides all information about each flash’s settings and status. With a with a simple push of a button, you can adjust flash power, modeling light, and more.
To connect Elinchrom studio flashes to your computer, a bridge is required that uses USB or Bluetooth for the computer and Skyport for the studio flashes. There are two ways to create this bridge: with the accessory Elinchrom Bridge or with the battery-powered flashes Elinchrom ONE, Elinchrom THREE, and Elinchrom FIVE.
You can control the flashes simultaneously from your computer and smartphone, giving you full freedom of movement in the studio while maintaining complete control of all light sources.
NAME FLASHES, ACTIVATE PHOTOCELL, CHECK SOFTWARE VERSION
Using the Elinchrom Studio, you can name each flash individually, which simplifies control in large setups with multiple light sources. If a new firmware version is available for the flash, you’ll be notified. You can also group flashes and move them between groups directly in the app or Elinchrom Studio, allowing quick light adjustments for any group.
- Control and manage up to 20 Elinchrom devices
- Control each unit individually, in groups, or all together
- 20 channels available
- 4 flash groups with unique color coding
- Move units between groups using "Drag and Drop"
|
- Assign a unique name to each unit
- Save settings for later recall
- Clear signal strength information
- Firmware version and update notifications
- Firmware updates (for compatible models)
|
Elinchrom Bridge or Elinchrom ONE|THREE|FIVE – The Key to Remote Control
The Elinchrom Bridge module or the battery-powered flashes Elinchrom ONE, THREE, and FIVE serve as links between your computer and Elinchrom units. The Bridge connects via USB to your computer and via Bluetooth to your iOS smartphone. Both the Bridge and ONE/THREE/FIVE communicate with Elinchrom studio flashes using Skyport radio protocol.
VIDEO – SIMPLIFIED WORKFLOW WITH ELINCHROM STUDIO SOFTWARE
Compatibility
| Elinchrom Device |
ElinWin/Mac Software 1.20 |
iOS App 1.0.4 |
Friendly Name |
Elinchrom Updater 2.40 |
| Elinchrom ONE/THREE/FIVE /Built-in Bridge |
Yes |
Yes |
Yes |
Yes |
| D-Lite RX |
Yes |
Yes |
No |
Yes |
| BRX 250/500 |
Yes |
Yes |
No |
Yes |
| ELC Pro HD 500/1000 |
Yes |
Yes |
Yes |
Yes |
| ELC 125/500 |
Yes |
Yes |
Yes |
Yes |
| ELB 400 |
Yes |
Yes |
Yes |
Yes |
| ELB 500 TTL |
Yes |
Yes |
Yes |
Yes |
| ELB 1200 |
Yes |
Yes |
Yes |
Yes |
| ELM8 (LED) |
Yes |
Yes |
Yes |
No |
| Quadra Hybrid / AS |
Yes |
Yes |
No |
Yes |
| Bridge Module |
Yes |
Yes |
No |
Yes |
| |
| General Controls |
Yes |
Yes |
|
|
| Unit Skyport Signal Strength |
Yes |
Yes |
|
|
| Bridge Bluetooth Signal Strength |
Yes |
Yes |
|
|
| Frequency Channel Indicator |
Yes |
Yes |
|
|
| Bridge Battery Indicator |
No |
Yes |
|
|
TRANSMITTER PRO – TTL, HSS, HS
Elinchrom Transmitter Pro gives you full control of all Elinchrom flashes with built-in Skyport. Each flash’s current settings are displayed and instantly updated when changes are made on the flash, thanks to Elinchrom’s unique two-way communication. Transmitter Pro also enables TTL and HSS for flash models that support these functions. The HS function also requires Transmitter Pro along with flash models featuring long flash duration tubes.
SKYPORT PLUS – UNIVERSAL REMOTE CONTROL
Elinchrom Skyport Plus is available as both Transmitter and Receiver. The transmitter is compatible with most camera brands and can trigger and control power levels on compatible Elinchrom studio flashes. The receiver can be connected to speedlights via hot shoe and to studio flashes via sync cable. Skyport Plus provides highly reliable flash triggering across most flash models.
